Description

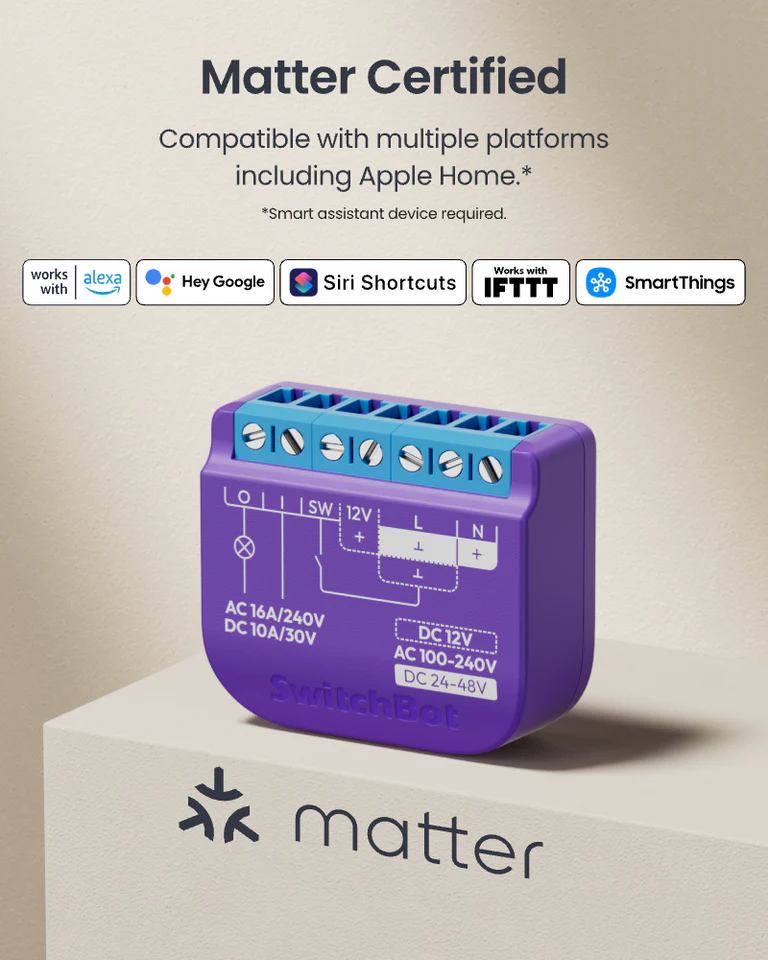

- Matter Certification for Seamless Smart Home Integration
With Matter certification, you can enable two SwitchBot Bluetooth devices to support Matter by connecting them to the SwitchBot Relay Switch 1. This allows you to control them directly through platforms like Apple Home, Alexa, Google Home, and SmartThings—all from a single app. - Enhanced Privacy and Faster Local Control
Matter technology uses verified encryption standards to protect user privacy. Enjoy faster local automation and control even when the internet is down. - Bluetooth Repeater for Extended Connectivity

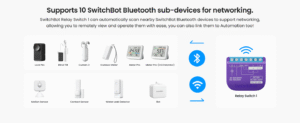

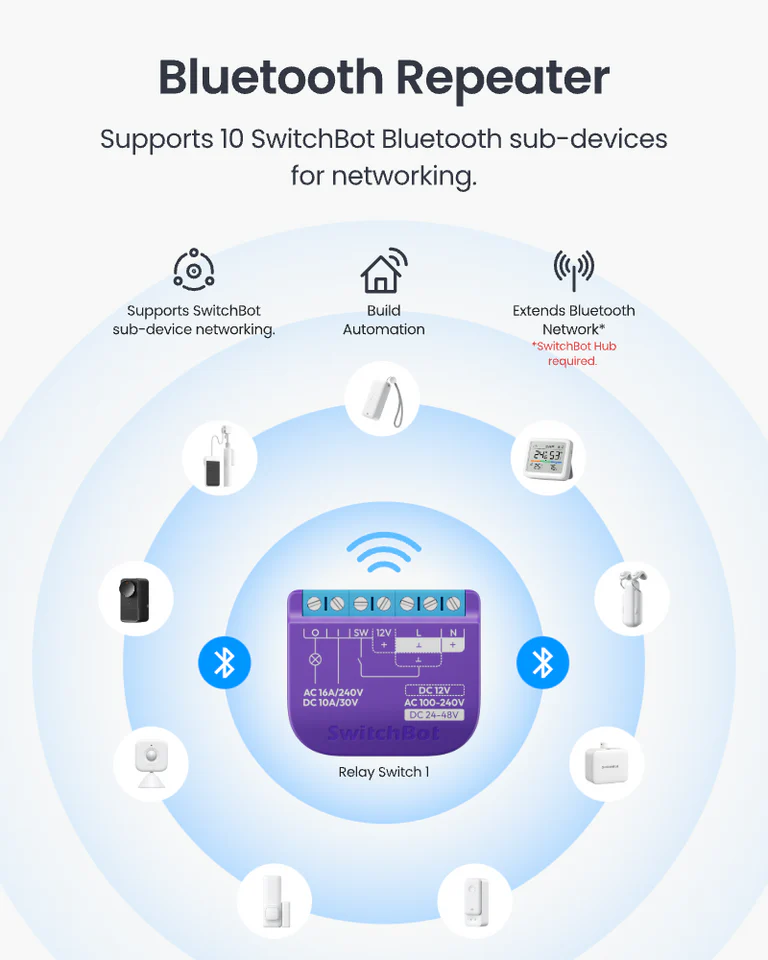

Built-in Bluetooth Repeater function supports up to 10 SwitchBot Bluetooth devices at once. Extend your Bluetooth network range up to 80m for better connectivity in large homes (range may vary depending on the environment). - Transform Traditional Devices into Smart Ones

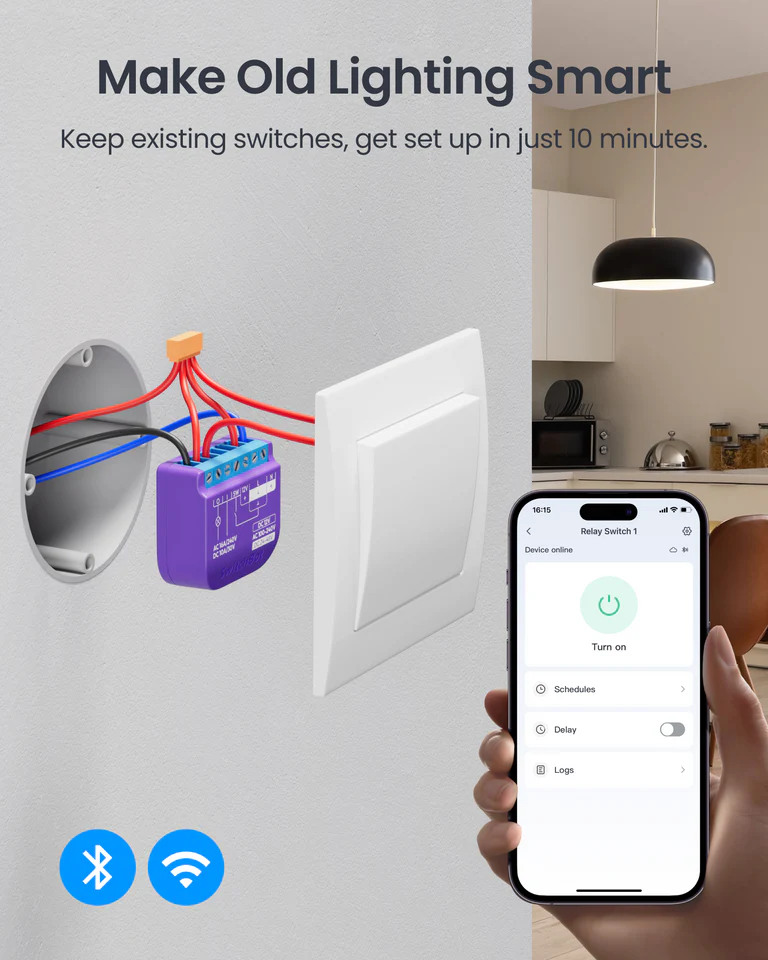

Easily upgrade your existing appliances like lights, garage doors, and locks to smart devices. Quick 10-minute installation without rewiring or replacing switches—just control them via your phone or automation. - Customizable Control with Multiple Options
Control your devices remotely through Wi-Fi, Bluetooth, voice commands, or set timers for automated tasks. Create smart scenes like automatically watering garden plants on sunny, hot days. - Reliable Safety Features for Peace of Mind
V0-rated flame-retardant casing and built-in over-temperature protection ensure safety. In case of an emergency, the device will automatically cut off power, protecting your home and family.

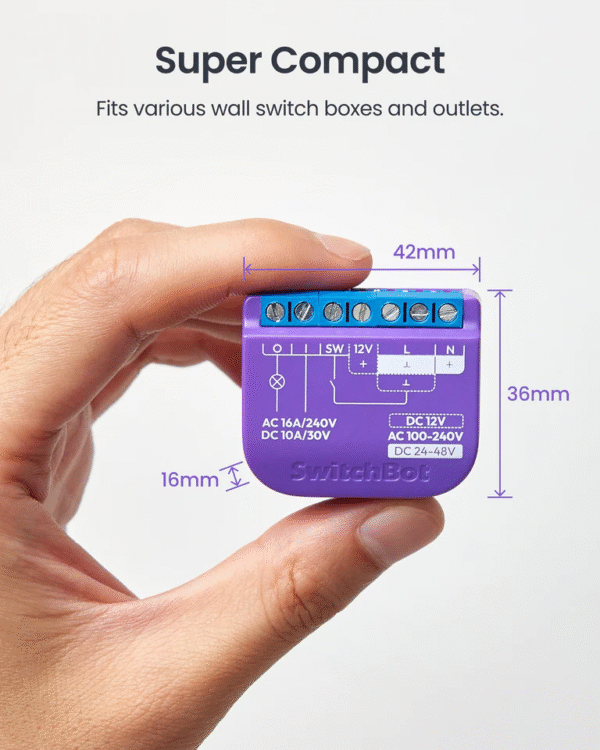

| Dimensions (mm) | 42 x 36 x 16±0.5 mm (1.6 x 1.4 x 0.6±0.02 in.) |
|---|---|
| Product Weight | Weight: 27 g (0.9 oz.) |
| Materials | PC |
| Power Supply | AC Input: 100-240V 50/60Hz DC Input: 24V-48V, 12V |
|---|---|
| Output Current | Max AC Output Current: 16 A Max DC Output Current: 10 A |
| Packing List | 1 * Product, 1 * Manual, 1 * Warranty Card |
| Connection Method | Wi-Fi+BLE |
| Installation Method | Embedded |
| Bluetooth Range | Indoor maximum range up to 10 meters / 33 feet, outdoor maximum range up to 30 meters / 100 feet (depending on local conditions) |
| Â Wi-Fi Range | Indoor maximum range up to 30 meters / 100 feet, outdoor maximum range up to 50 meters / 160 feet (depending on local conditions) |
| Certification Requirements | US: FCC EU: CE, ROHS |
| Button Function | Controls on/off of the output: controls the turning on and off of lights, sockets, access control, etc |
|---|---|
| Power Measurement | Not supported |
| Overload Protection | Not supported |
| Overtemperature Protection | Disconnects output immediately when exceeding 100°C |
| Switch Mode | Compatible with different switch types: 1. Toggle Switch: A switch with distinct ‘on’ and ‘off’ positions, ideal for traditional light switches. 2. Momentary Switch: A spring-loaded switch that momentarily changes the relay state when pressed, commonly used for doorbells and access control systems. 3. Detached Switch: The physical wall switch does not affect the device, ideal for smart lights that need constant power, similar to ceiling light controls. 4. Edge Switch: Each press of the button toggles the state, independent of the previous position, ensuring the state changes with every press. |
| Roller Blind Mode | Not supported |
| Garage Door Mode | Not supported |
| Matter | You can enter the Matter settings from the Relay Switch settings page to put the device into Matter setup mode and add it to the Home app. The Relay Switch itself is displayed as a switch in the Home app and can add Matter secondary devices. |
